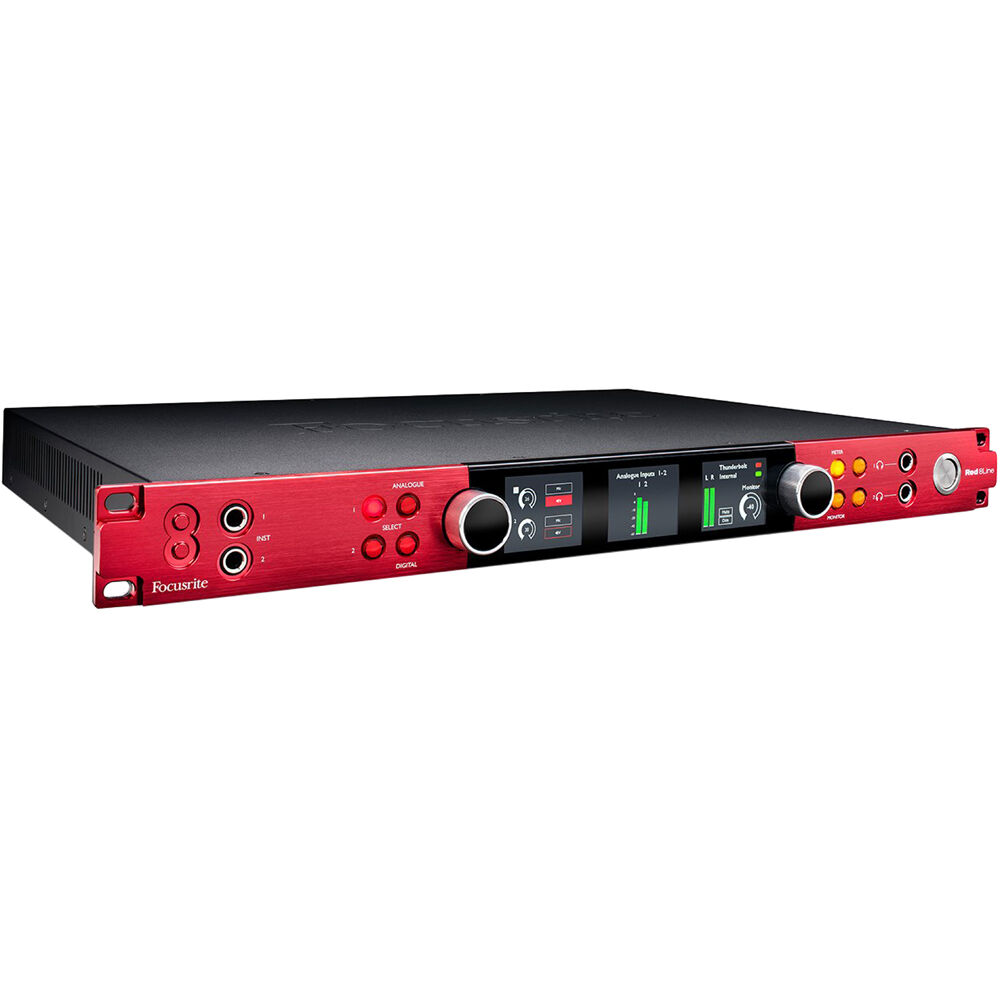

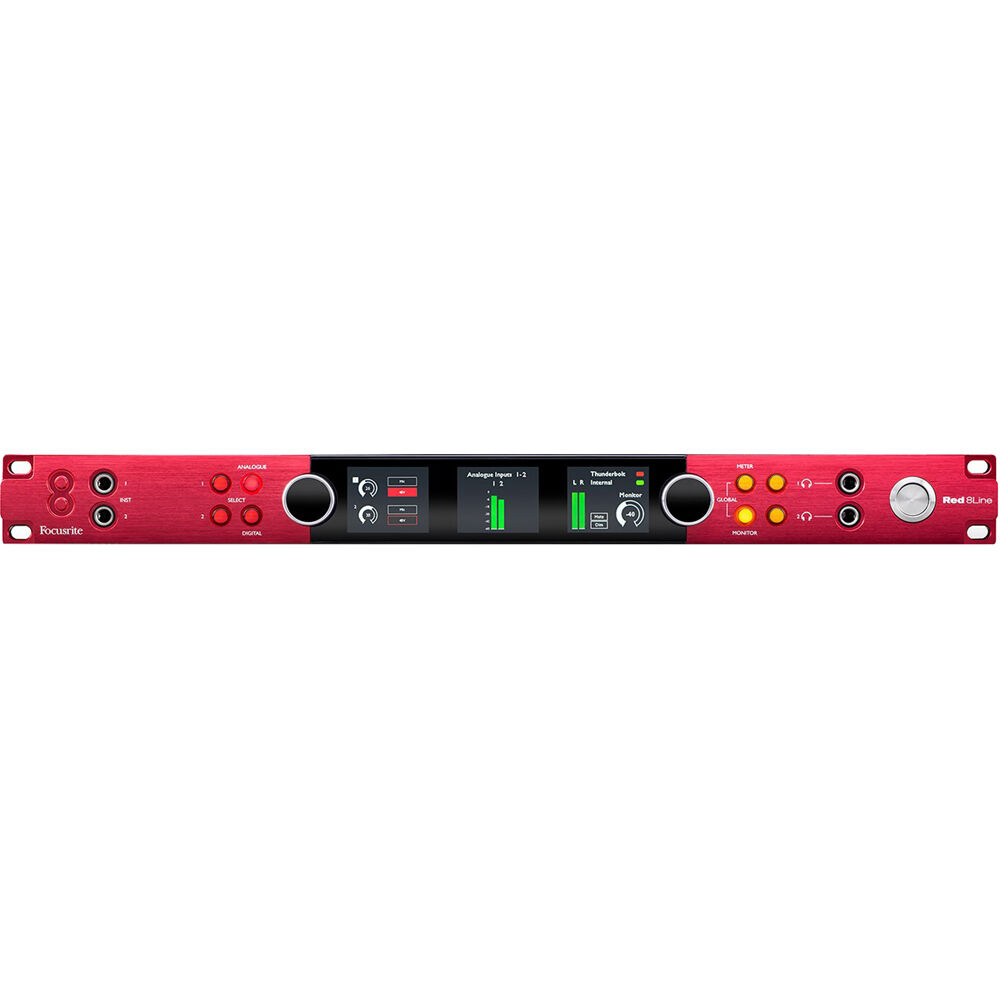

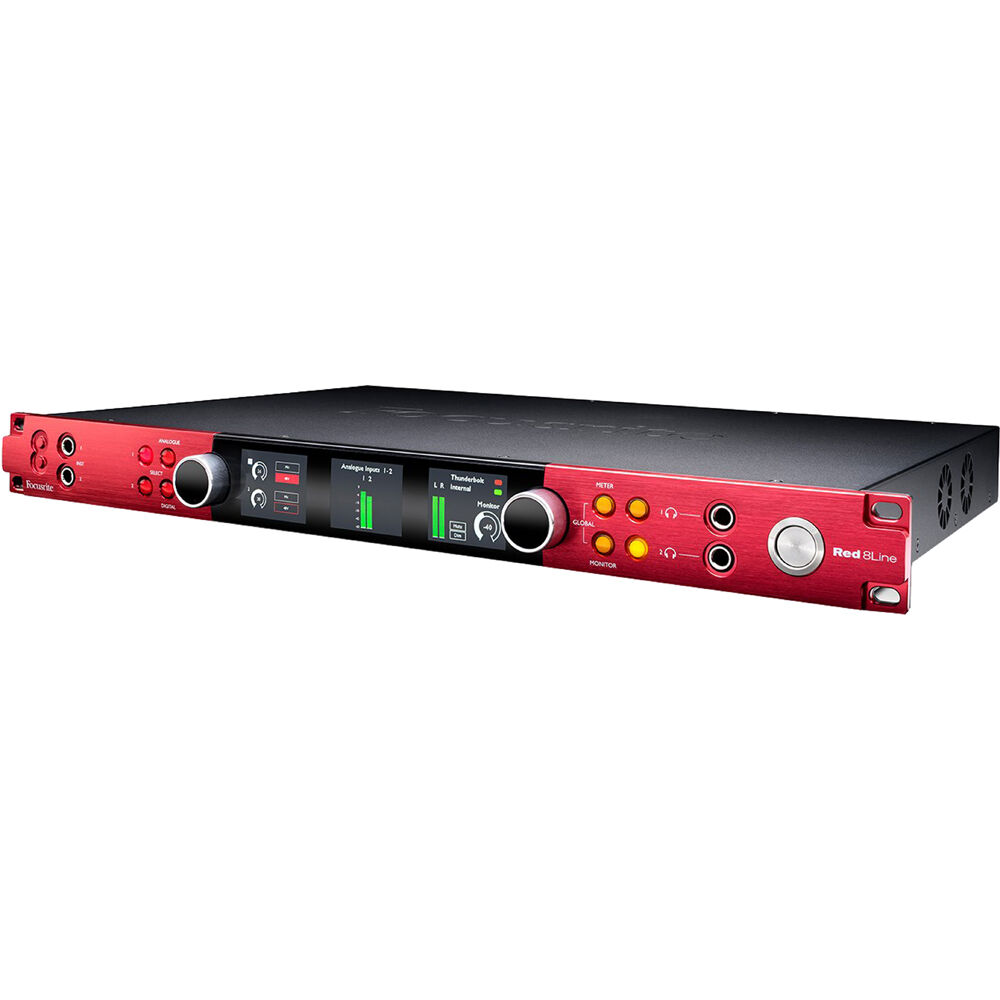

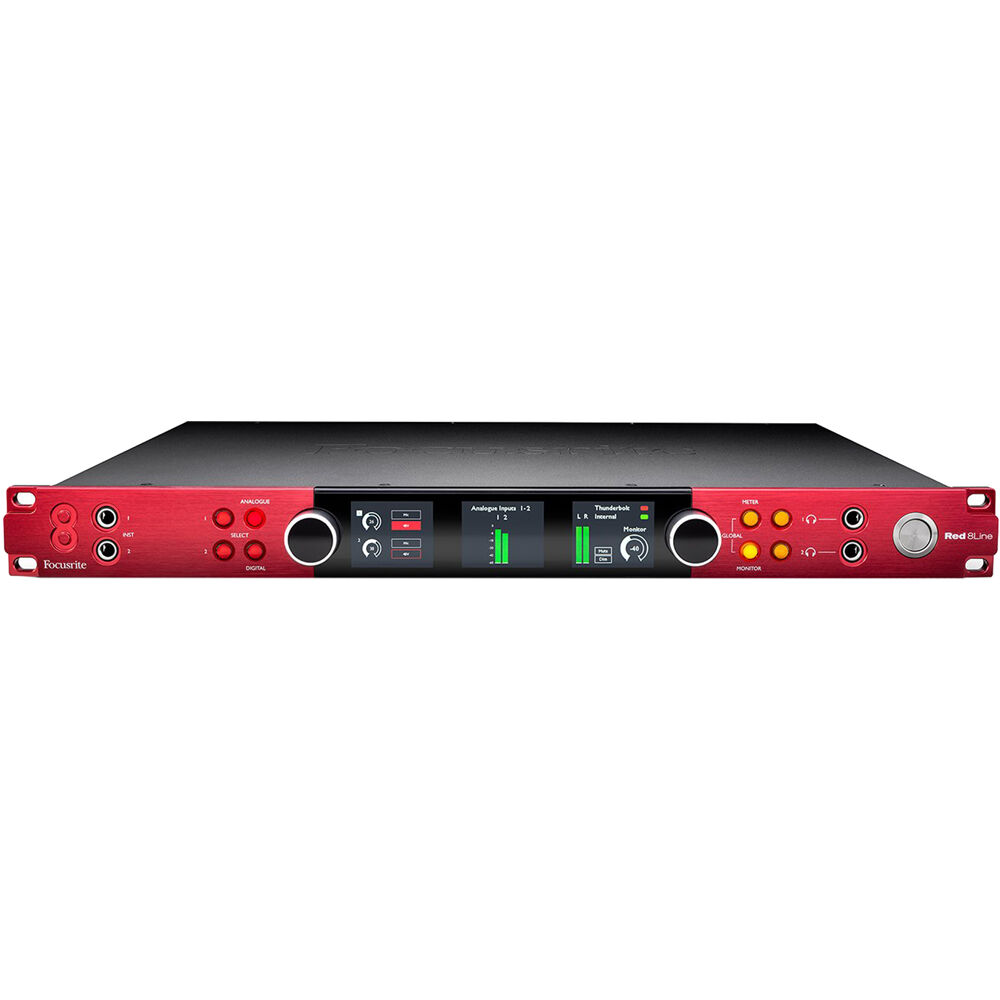

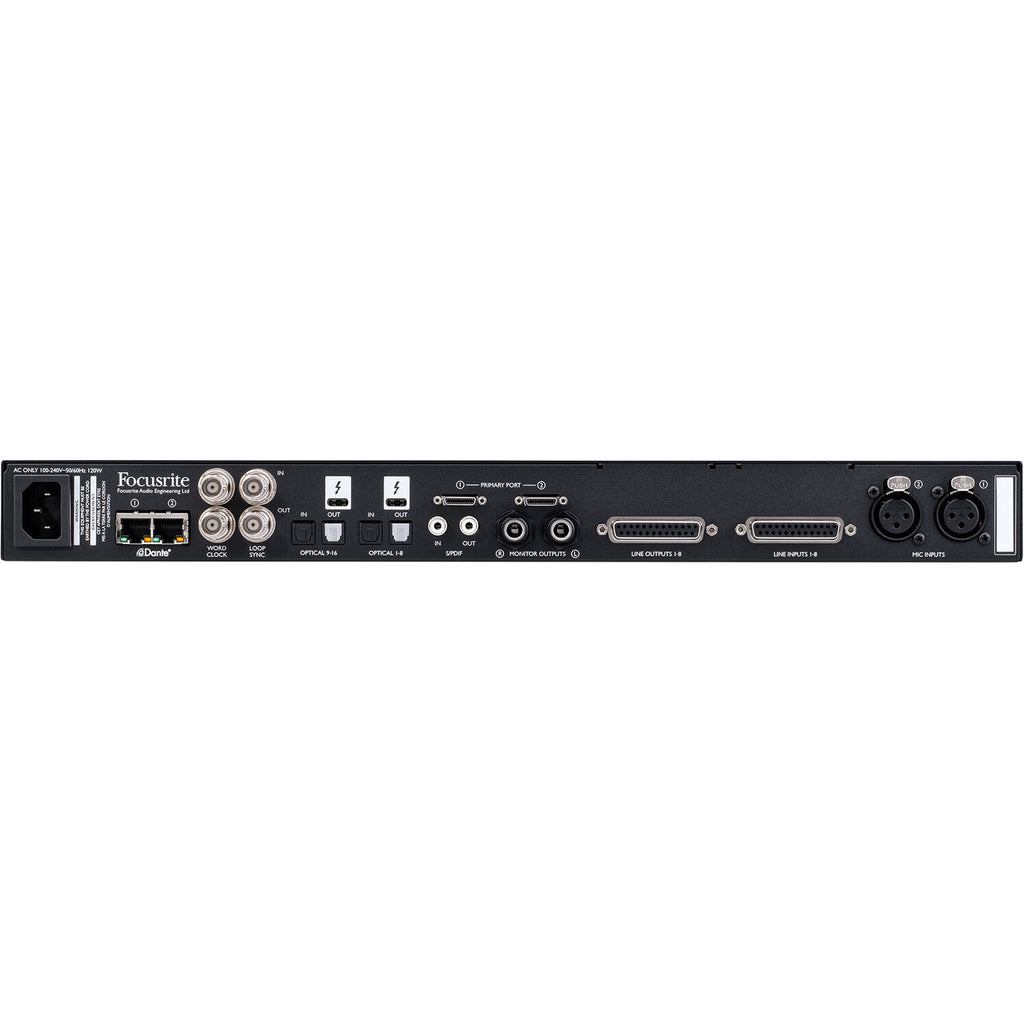

Focusrite Red 8Line – High-Channel Thunderbolt Interface for Pro Studios

Red 8Line is built for top-tier facilities demanding unmatched I/O and pristine sound quality. With two Red Evolution mic pres, 58 ins and 64 outs, ultra-fast Thunderbolt 3, Dante, ADAT, DigiLink, and full monitor control, it offers total production flexibility and premium conversion—all in one rack-ready unit at Soundium.

Kluczowe cechy

• 58 inputs / 64 outputs: Includes eight analog lines (via DB25), two mic pres, dual ADAT, S/PDIF, DigiLink, Dante, and dedicated monitor outs
• Red Evolution mic preamps with Air mode: Ultra-clean gain up to 63 dB with phantom, high-pass, phase-reverse, and analog-inspired tonal enhancement
• Premium converters with 119 dB A-D & 121 dB D-A range: Mastering-grade 24-bit/192 kHz conversion for extraordinary clarity
• Multiple connectivity options: Dual Thunderbolt 3 (for chaining), DigiLink for Pro Tools | HD, Dante audio-over-IP (32×32), ADAT, S/PDIF, Word Clock and Loop Sync
• Advanced monitoring controls: Supports mono, stereo, up to 7.1.2 Immersive setups, with front-panel monitor/hover switching
• Precision metering and control: Three front-panel LCDs, two headphone outputs, dual instrument inputs, and remote control via RedNet Control software and iOS/desktop apps

Korzyści

Whether you're managing a high-track-count project, switching seamlessly between DAWs, expanding via Dante, or working in immersive formats like 7.1 or Dolby Atmos, Red 8Line brings flexibility and sound fidelity into one unit. Its versatile connectivity and remote control workflows allow creative sessions to flow without pause, while the converters and preamps ensure what you record is crystal-clear and true.

Specyfikacja

• I/O: Up to 58 in / 64 out via Thunderbolt 3 or DigiLink
• Analog Inputs: 2 × Red Evolution mic pres (XLR) + 2 × instrument (¼″); 8 line ins/outs via DB25
• Digital I/O: ADAT optical, S/PDIF coaxial, dual Dante Ethernet (32×32), Word Clock, DigiLink
• Converters: 24-bit / 192 kHz, 119 dB A-D, 121 dB D-A
• Preamps: Up to 63 dB gain, with phantom power, high-pass filter, phase reverse, Air mode
• Monitor & Headphone Outs: Dedicated L/R monitor, 2 × front-panel headphone jacks
• Display & Control: Three LCD meters, rotary encoders, front panel and RedNet Control support
• Łączność: Dual Thunderbolt 3, DigiLink, Ethernet (Dante), ADAT, S/PDIF, Word Clock, Loop Sync
• Form Factor: 1U rackmount; standard IEC power
• Weight & Dimensions: Approximately 19″ W × 13.4″ D × 1.7″ H; around 4.85 kg / 10.7 lb

What’s in the Box

• Red 8Line audio interface
• IEC power cable
• Thunderbolt 3 cable
• Software bundle with Brainworx bx_console Focusrite SC, Red 2 & 3 plug-ins, and Focusrite Plug-in Collective access

Zastosowanie

Perfect for high-end music production studios, post and film facilities, immersive mixing environments, Dante-enabled live sound installations, and Pro Tools | HD users needing seamless DAW switching.

Kompatybilność

Supports macOS and Windows with Thunderbolt 3 or Pro Tools | HD via DigiLink. Dante integrates with audio-over-IP networks. Controlled from RedNet Control on desktop or iOS. Works with virtually any DAW and supports immersive monitoring standards.

Zalety i wady

✅ Zalety:

• Exceptional I/O density with flexible analog and digital routing
• Pro-grade conversion and modern mic preamps elevate every recording
• Dante, DigiLink, Thunderbolt & ADAT open up future studio pathways
• Robust monitor control and routing capability in one unit

⚠️ Wady:

• High price point—built for large-scale, professional workflows
• Complex feature set requires time to master
• Not portable—rack-mounted and mains-powered unit

Focusrite Red 8Line is the ultimate centerpiece for professional studios seeking unmatched routing, pristine fidelity, and flexible networked audio workflows. Built to handle the most demanding sessions—discover its power today at Soundium.
