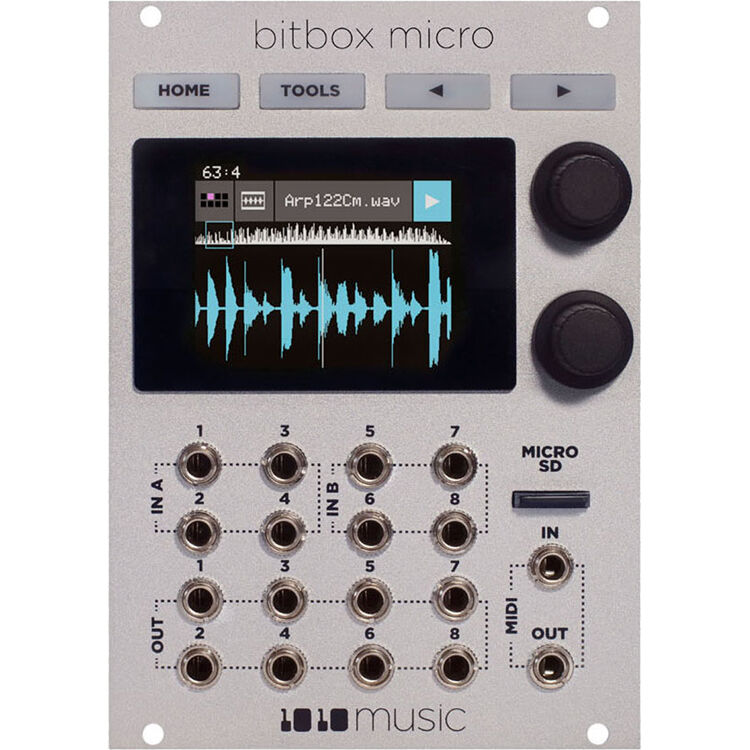

1010music Bitbox Micro – Compact Eurorack Sampler with 8 Stereo Pads

The Bitbox Micro by 1010music delivers powerful sampling capabilities in just 18 HP of Eurorack space. Designed for modular synth users and live performers, it offers expressive sample playback, recording and creative manipulation while fitting easily into both small cases and larger modular rigs.

Key Features

• 8 stereo sample pads: Load one-shots, multisamples, loops, sliced material or granular textures for dynamic performance.
• Internal memory and microSD streaming: Use 64 MB of RAM for up to 24-voice polyphonic playback, or stream long samples directly from a microSD card.
• Versatile playback modes: One-shot, toggle, gate, clip mode, slicer mode and granular mode cover everything from rhythmic content to evolving soundscapes.
• Recording and resampling: Record stereo audio directly into the module, use threshold or clock-synced triggering, and resample the master output when building complex layers.
• Deep CV, gate and MIDI integration: Eight configurable inputs plus multiple output routings allow modulation, triggering, clocking and sending audio to three stereo or six mono outputs.
• Touchscreen control: A responsive touchscreen enables quick editing, fast navigation and hands-on performance interaction.

Customer Benefits

The Bitbox Micro adds advanced sampling to any Eurorack system while preserving valuable rack space. Whether you’re slicing loops, triggering beats, layering textures or integrating external hardware via MIDI and CV, its streamlined interface makes the creative process fast and enjoyable. It’s equally strong for live performance, sound design and compact travel setups available through Soundium.

Quick Specs

• Rack width: 18 HP
• Module depth: approx. 3.2 cm
• Internal memory: 64 MB RAM
• Sample streaming: Supports files up to 4 GB from microSD
• Polyphony: Up to 24 voices using internal memory
• Supported file formats: WAV, 16/24/32-bit, any sample rate (48 kHz recommended)
• Power requirements: +12 V 400 mA, –12 V 0 mA
• Audio resolution: 24-bit ADC/DAC

What’s in the Box

• 1010music Bitbox Micro module
• microSD card with demo presets and samples
• Eurorack power ribbon cable
• MIDI adapter (mini TRS to 5-pin DIN)
• Quick Start guide and documentation

Use Cases / Ideal For

Ideal for modular synthesists, live electronic performers and producers who need powerful sampling, looping, slicing and granular processing in a compact footprint. Excellent for small portable cases and hybrid studio-modular workflows.

Compatibility

Fully compatible with standard Eurorack power systems. Works with MIDI controllers via mini-TRS MIDI and integrates with CV/gate sources for triggering, modulation and clocking. Supports microSD cards for extended sample libraries and firmware updates.

Pros & Cons

✅ Pros:

• High-end sampling features in a compact 18 HP format
• microSD streaming supports long samples and full-length clips
• Flexible CV, gate and MIDI integration
• Touchscreen interface for fast editing and live control

⚠️ Cons:

• Requires a Eurorack case and power source
• Advanced modes like granular and slicing take time to master

The 1010music Bitbox Micro brings studio-grade sampling, deep modulation routing and touchscreen control to any Eurorack setup. For musicians seeking maximum capability in minimum space, it’s a powerful and versatile addition at Soundium.
